| Type | Monocrystalline | |
|---|---|---|
| Model No. |
|
|
| Warranty | ||
| Product Warranty | 12 Years | |
| Power Warranty | 25 Years of 84.8% Output Power | |
| Electrical Data at STC | ||
| Maximum Power (Pmax) |
|
|
| Voltage at Maximum Power (Vmpp) |
|
|
| Current at Maximum Power (Impp) |
|
|
| Open Circuit Voltage (Voc) |
|
|
| Short Circuit Current (Isc) |
|
|
| Panel Efficiency |
|
|
| Power Tolerance (Positive) |
|
|
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||
| Electrical Data at NOCT | ||
| Maximum Power (Pmax) |
|
|
| Voltage at Maximum Power (Vmpp) |
|
|
| Current at Maximum Power (Impp) |
|
|
| Open Circuit Voltage (Voc) |
|
|
| Short Circuit Current (Isc) |
|
|
| Temperature | 45±2 °C | |
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | ||
| Thermal Ratings | ||
| Operating Temperature Range | -40~85 °C | |
| Temperature Coefficient of Pmax | -0.35 %/°C | |
| Temperature Coefficient of Voc | -0.28 %/°C | |
| Temperature Coefficient of Isc | 0.048 %/°C | |
| Maximum Ratings | ||
| Maximum System Voltage | 1500 V | |
| Series Fuse Rating | 25 A | |
| Material Data | ||
| Panel Dimension (H/W/D) | 2274x1134x35 mm | |
| Weight | 28.9 kg | |
| Cell Number | 144 | |
| Glass Type | Anti-reflection Coating, Tempered | |
| Glass Thickness | 3.2 mm | |
| Frame Type | Anodized Aluminium | |
| Junction Box Protection Class | IP 68 | |
| Cable Crossection | 4 mm2 |

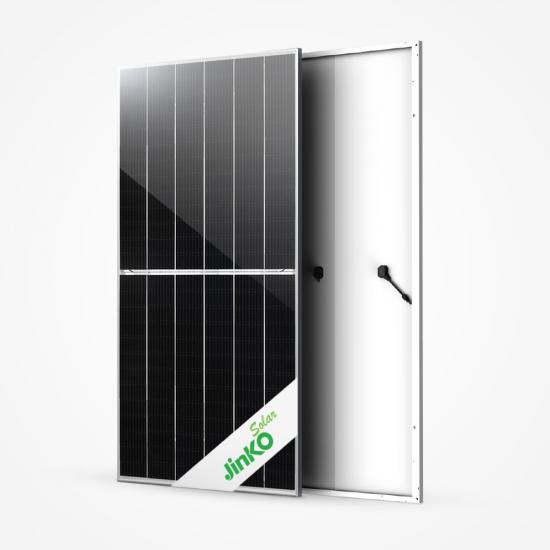

Jinko Tiger PRO 72hc 550 Watt
₦148,500.00
